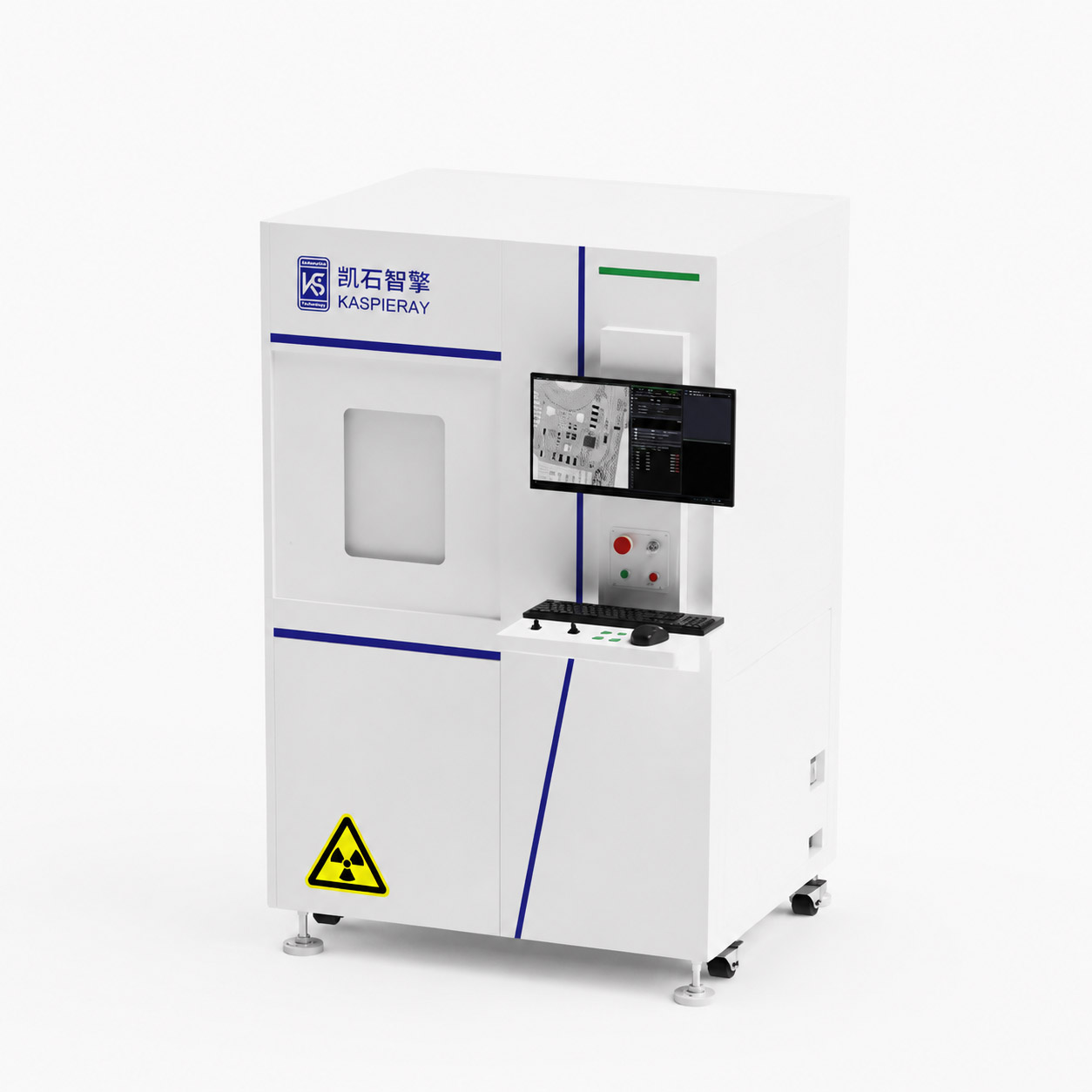

| Model | BL-160H | BL-160H MAX |
光管类型(Tube type) | 封闭式(Enclosed type) | 封闭式(Enclosed type) |
空间分辩率(Spatial resolution) | 100μm | 5μm |
光管电压(Tube voltage) | 160kv | 130kv |
光管电流(Tube current) | 3mA | 300μA |
| 取像方式(mage taking type) | 平板数字成像(Flat-panel Digital） | 平板数字成像(Flat-panel Digital） |
成像精度(Imaging precision) | 140μm | 140μm |
A/D密度值(A/D density value) | 16bit(65536) | 16bit(65536) |
分辨率(Resolution) | 3072*3072px | 3072*3072px |
采集帧频(Frame frequency) | 1(FPS) | 2(FPS) |
| 光学放大(optical magnification) | 5X | 5X |
操作系统(Operating system) | WINDOWS 10/11 | WINDOWS 10/11 |
电源/功率(Power supply/Power) | AC110-220V 50-60HZ 1800W | AC110-220V 50-60HZ 1800W |
辐射安全测试(Radiation safety test) | <1 uSV/H | <1 uSV/H |
| 载物台旋转角度(Stage rotation angle) | 360。 | 360。 |
平板旋转角度(Detector rotation angle) | NO | NO |
载物台尺寸(Stage size) | 500*600mm | 500*600mm |
检测范围(Detection range) | 430*430mm | 430*430mm |
载物台承重(Load-bearing) | ≤30kg | ≤30kg |
机器尺寸(Machine size) | 1140*1225*1750mm(L*WΛH) | 1140*1225*1750mm(L"W"H) |
机器尺寸(含显示器)(lncluding monitor) | 1140*1600*1750mm(L*W"H) | 1140*1600*1750mm(L"W"H) |
机器重量(Machine weight) | 1000kg | 1000kg |
平台运动方式(Stage movement) | 自动/手动(Automatic/Manual) | 自动/手动(Automatic/Manual) |
| CE认证 (CE Certificate) | Yes | Yes |
辐射安全许可证(Radiation Safety Permit) | Yes | Yes |
